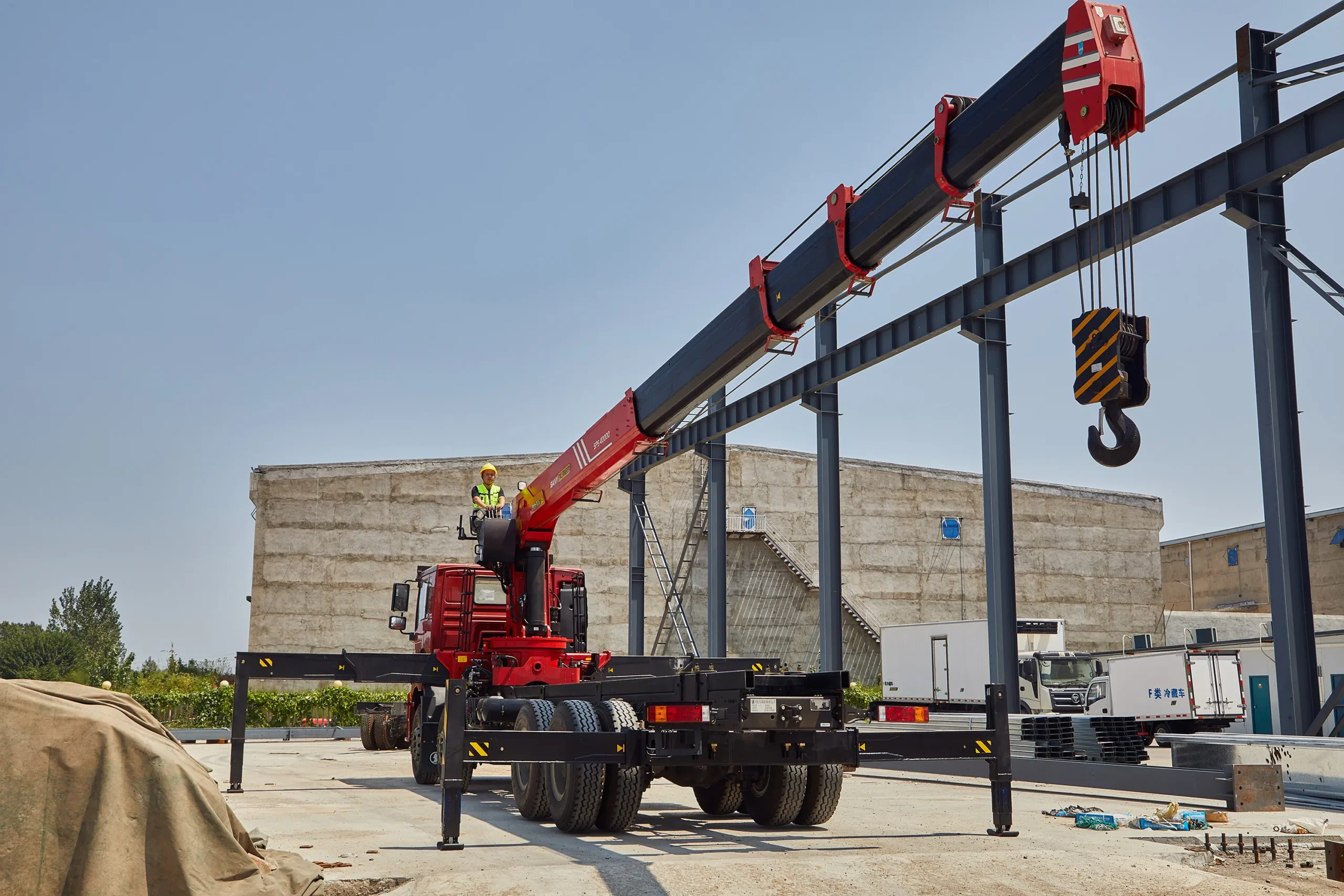

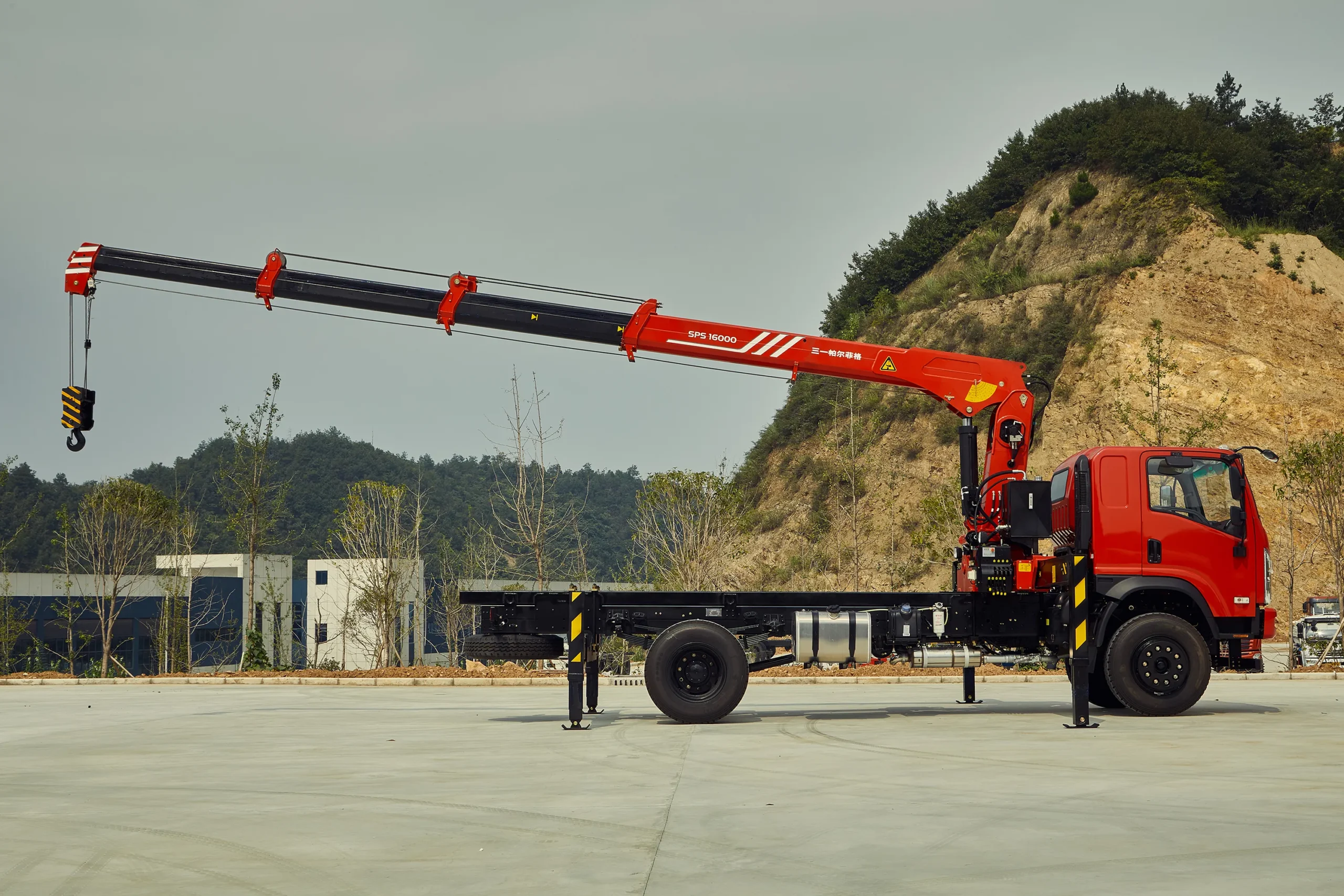

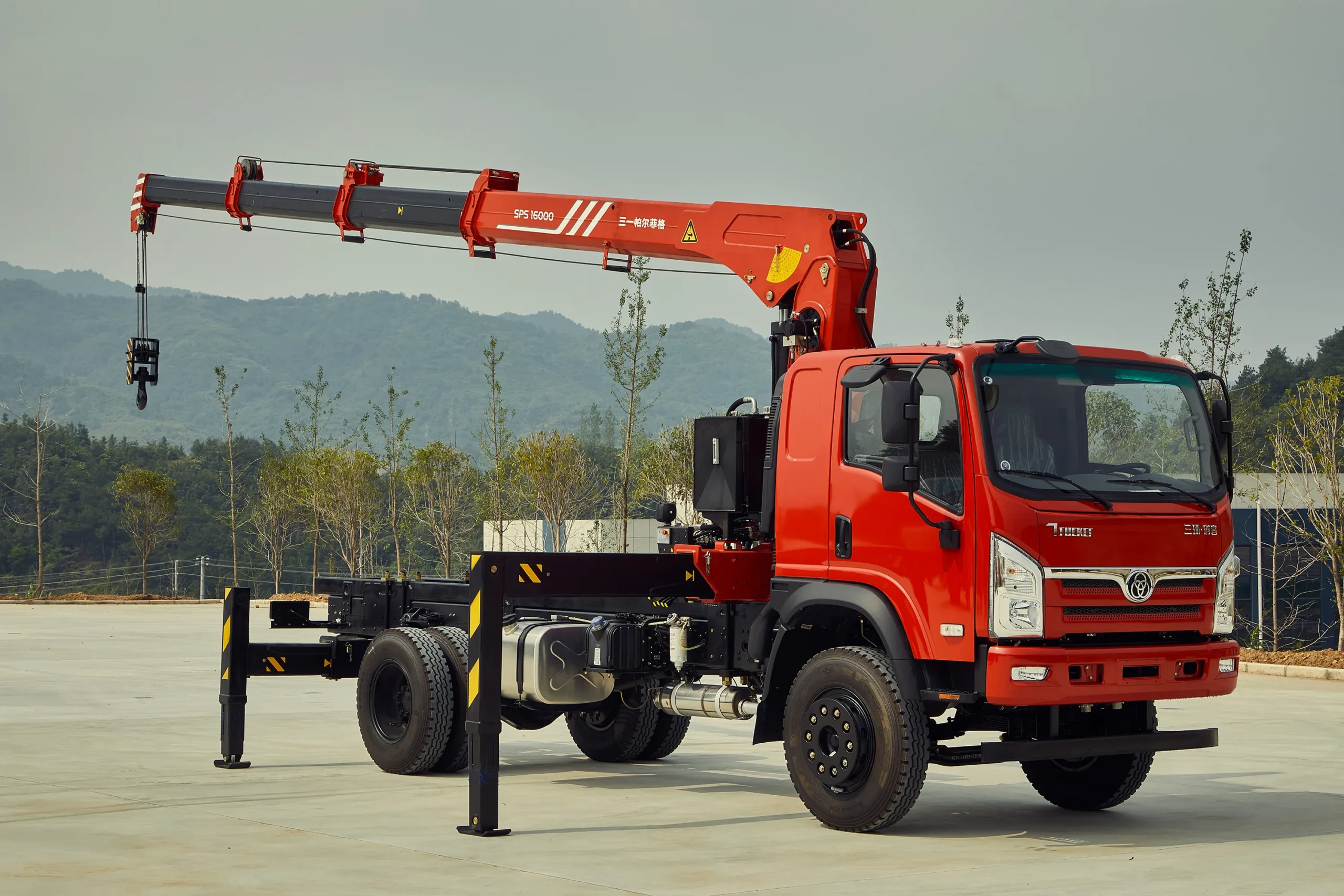

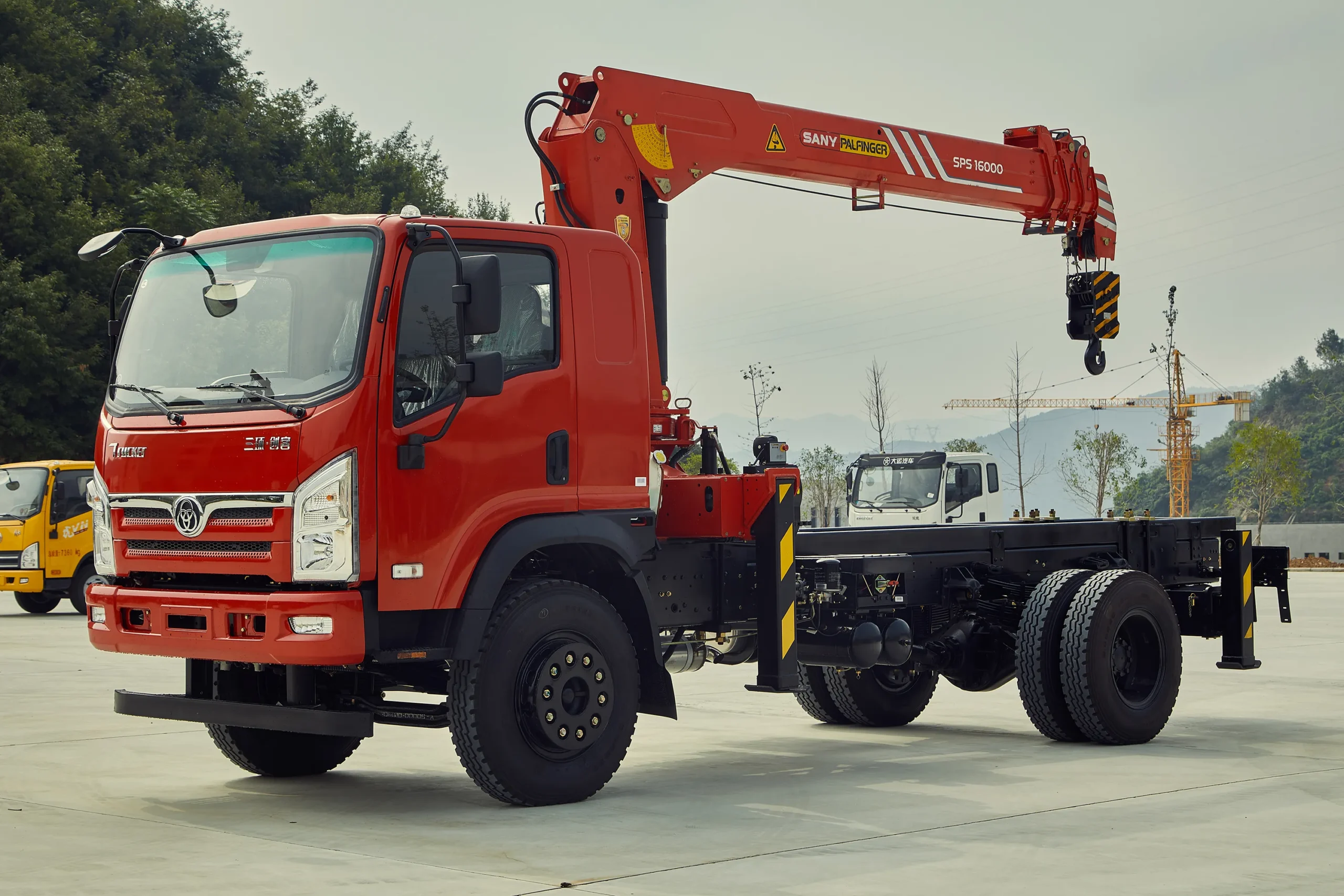

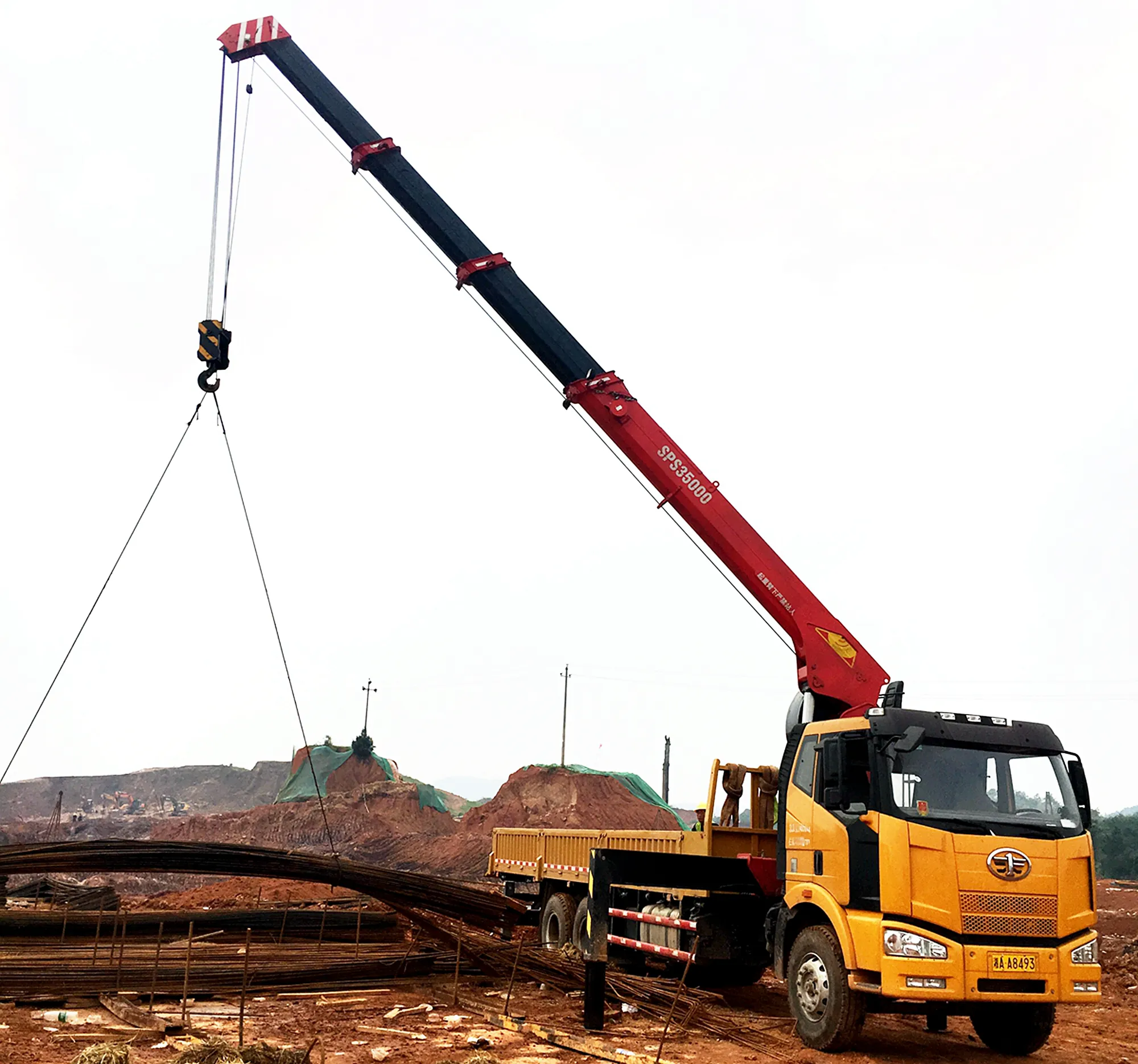

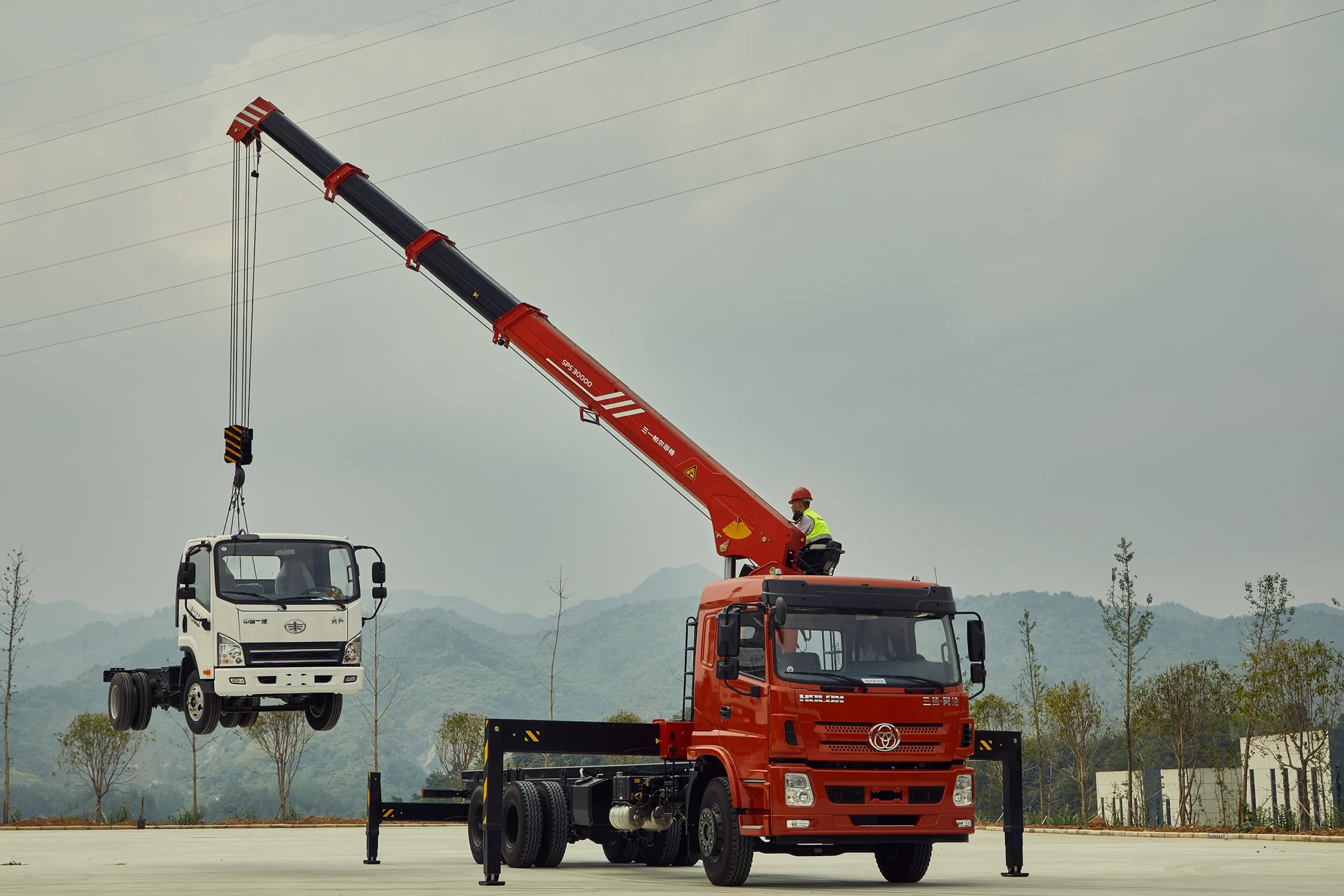

Stiff Boom Crane
10.4-21.6 m
Boom Length
3.2 - 22 T
Max. Lifting Capacity
1.2 - 6.8 T
Overall Weight
Features
Ergonomic Design
Throughout the design phase SANY PALFINGER follows the general principles of ergonomics to ensure a comfortable and safe crane operation.
Integrated Electric System
Robust, reliable, and easy-to-maintain design
Network of modular components connected through standardized interfaces
Network of modular components connected through standardized interfaces
Advanced Proportional Hydraulic System
Sensitive controls with accurate positioning for lifting jobs requiring high precision. Stable movement and ability to utilize multiple functions simultaneously.
High Pressure and Return Filter
All the series are equipped with high-pressure filter as standard configuration. It protects the hydraulic components of the crane and prolongs the service life of the hydraulic system
Specs & Compare
| Models | Boom Length | Max. Lifting Capacity | Overall Weight |
|---|---|---|---|
| SPS8000 | 3.5-10.4m m | 3.6 T | 1.3 T |
| SPS12500 | 4.3-11.9m m | 5.6 T | 2.37 T |
| SPS16000 | 4.7-12.5m m | 7.5 T | 2.65 T |
| SPS16000 | 4.8-13.8 m | 8 T | 2.73 T |
| SPS20000 | 5.3-18.1m m | 9 T | 4.11 T |
| SPS25000 | 5.3-18.1 m | 11 T | 4.13 T |
| SPS30000 | 5.6-18.5 m | 12 T | 4.65 T |
| SPS35000 | 5.6-18.5 m | 14 T | 6.12 T |
| SPS40000 | 6.23-19m m | 16 T | 6 T |
| SPS50000 | 6.2-21.6 m | 20 T | 6.8 T |
