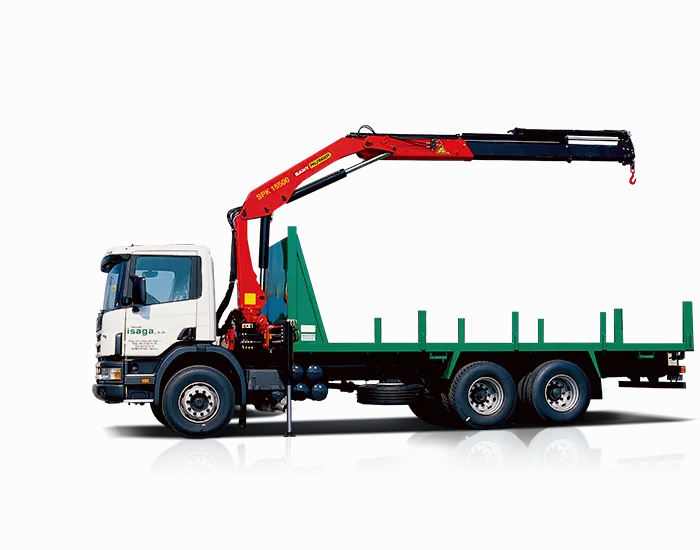

Knuckle Boom Crane
3.3 - 21.5 T
Max. Lifting Capacity
0.7 - 7.5 T
Overall Weight
9.6-16 m
Max. Hydraulic Outreach
Features
Ergonomic Crane Control
1. Ergonomically arranged operating levers for all crane functions.
2. Functional design for better comfort during crane operation.
3. Straightforward service and maintenance.
2. Functional design for better comfort during crane operation.
3. Straightforward service and maintenance.
High-density Paint
1. Top-quality and anti-corrosion surface paint.
2. Long-term UV-resistant coating.
3. Aesthetically pleasing and attractive color.
2. Long-term UV-resistant coating.
3. Aesthetically pleasing and attractive color.
Load Holding Valve
1. Hold the cylinder in position.
2. Standard fittings on all cylinders.
3. Strategic positioned to avoid damage.
2. Standard fittings on all cylinders.
3. Strategic positioned to avoid damage.
High-speed extension
1. Increase the extension and retraction speed of the boom system.
2. Crane works faster with return oil utilization.
3. Time-saving during crane operation.
2. Crane works faster with return oil utilization.
3. Time-saving during crane operation.
Radio Remote Control
1. Efficient remote control of the crane.
2. Safe crane operation outside of the danger zone.
3. Easy maintenance and quick troubleshooting.
2. Safe crane operation outside of the danger zone.
3. Easy maintenance and quick troubleshooting.
Top Seat
1. Excellent visibility of the surrounding area.
2. Foldable sun protection umbrella for hot weather.
3. Seat cover to prevent exposure to the sun.
2. Foldable sun protection umbrella for hot weather.
3. Seat cover to prevent exposure to the sun.
Hydraulic Overload Safety Device
1. Prevents the crane from overloading.
2. Overload protection system with emergency cut-off function.
3. Stops all movements of the crane that increase the load.
2. Overload protection system with emergency cut-off function.
3. Stops all movements of the crane that increase the load.
Hose Equipment for Attachments
1. Additional hydraulic functions for attachments.
2. Simple installation with hose tray protection.
3. Diverse applications suitable for different industries.
2. Simple installation with hose tray protection.
3. Diverse applications suitable for different industries.
Specs & Compare
| Models | Max. Lifting Capacity | Overall Weight | Max. Hydraulic Outreach |
|---|---|---|---|
| SPK6500 | 3.3 T | 0.881 T | 9.6 m |
| SPK8500 | 3.3 T | 0.881 T | 9.6 m |
| SPK10000 | 5.7 T | 1.33 T | 12.4 m |
| SPK15500 | 6.2 T | 2.029 T | 12.4 m |
| SPK12000 | 6.79 T | 1.71 T | 12.4 m |
| SPK18500 | 8 T | 2.374 T | 12.4 m |
| SPK32080 | 8.5 T | 3.51 T | 12.1 m |
| SPK36080 | 8.5 T | 3.513 T | 12.1 m |
| SPK23500 | 10 T | 2.65 T | 16.7 m |
| SPK38502 | 13 T | 4.9 T | 16.8 m |
| SPK42502 | 14.34 T | 5 T | 16.8 m |
| SPK55502 | 20 T | 6.02 T | 15.9 m |
| SPK61502 | 21.5 T | 6.02 T | 15.9 m |
