Below 45T Truck Crane
16 - 45 T
Max. Lifting Capacity
32 - 45 m
Max. Boom Length
40.5 - 60.5 m
Max. Lifting Height
Features
Compact Design
The three-axle cranes are capable of accessing various urban or small jobsites, featuring high flexibility and fast transferring.
Double Pump Intelligent Flow Distribution System
The electro-hydraulic control system realizes effective flow distribution, featuring quick response to combined motions and small impact shock, energy saving, and environmentally friendly. Precise control: Excellent inching performance, min. The stable speed of a single rope is 1.2m/min and min. The sound speed of slewing is 0.1°/s, realizing precise lifting of mm level. Integrated slewing buffer control: boost buffer, sequential brake, and free swing technology—smooth start and stop.
High-performance Chassis
Innovative structural frame verified by 200,000 cycling fatigue tests to ensure high reliability.
Smart Control System
CAN BUS system: Controllers, displays, meters, I/O modules, sensors, etc., are integrated into CAN Bus networking and fast-responsive.
Fault diagnosis system: Operating device with intelligent controller, body with BCM module, accurately locating the fault point, making the maintenance convenient.
The SANY load moment indicator system protects against overloading, over-release, and over-winding.
Fault diagnosis system: Operating device with intelligent controller, body with BCM module, accurately locating the fault point, making the maintenance convenient.
The SANY load moment indicator system protects against overloading, over-release, and over-winding.
Specs & Compare
| Models | Max. Lifting Capacity | Max. Boom Length | Max. Lifting Height |
|---|---|---|---|

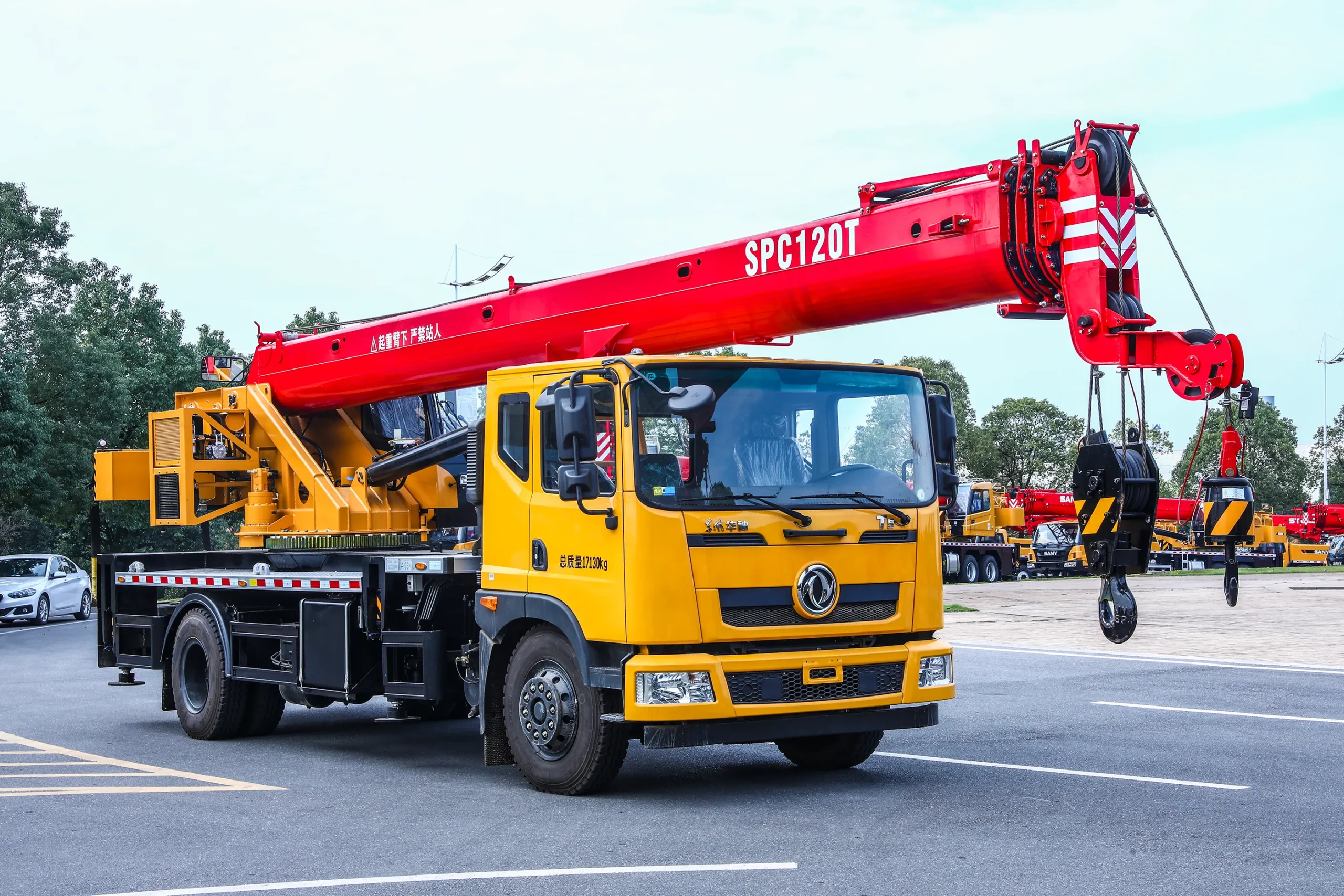

| STC120T4 | 12 T | 28.1 m | 28.5 m |
| STC250C4 | 25 T | 35 m | 43.5 m |
| STC250T5 | 25 T | 41 m | 49 m |
| STC250C5 | 25 T | 41 m | 49.5 m |
| STC300T5 | 30 T | 42.5 m | 51 m |
| STC300C5 | 30 T | 42.5 m | 51 m |
| STC400T | 40 T | 44.5 m | 59.5 m |
| STC450C5 | 45 T | 44 m | 60.5 m |
