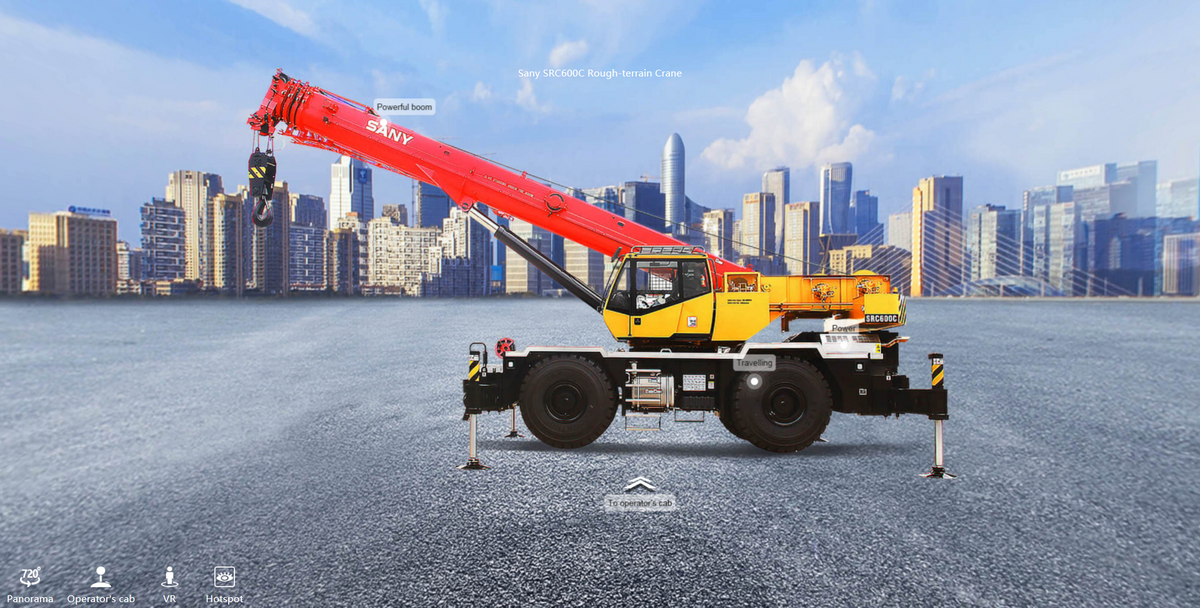

50 – 80T Rough-terrain Crane
50 - 80 T
Max. Lifting Capacity
43,5 - 47,5 m
Max. Boom Length
61 - 67 m
Max. Lifting Height
Features
Compact Layout
Three hinges of the luffing mechanism are located for a more compact body size, optimized for on-road transport and off-road traveling.
Tough Performance
The cranes are designed for rugged terrain or extreme environmental conditions, like deserts or freezing areas.
Powerful Transmission
High-quality torque converter functioning high speed locking, increasing transmission efficiency at high-speed traveling. Electrical transmission features smooth gear shift.
Precise Control
Electrical proportional joystick: quick reaction in 5ms, providing smooth start and stop operation. The joystick stroke can be adjusted from 0%-100% so the loading can be as precise as the mm level. It is an innovative flow distribution system, which is the initial flow shunt and confluence method and improves inching motions.
Specs & Compare
| Models | Max. Lifting Capacity | Max. Boom Length | Max. Lifting Height |
|---|---|---|---|
| SRC500T | 50 T | 45 m | 62 m |
| SRC650T | 65 T | 45.5 m | 62.5 m |
| SRC800T | 80 T | 47.5 m | 65.5 m |
